Scrubbing tower

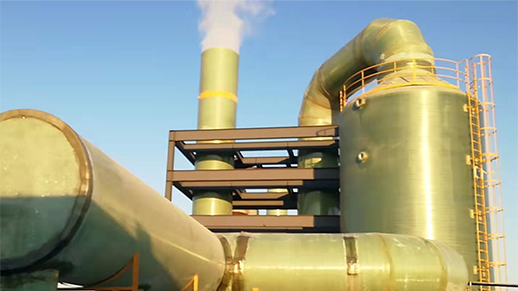

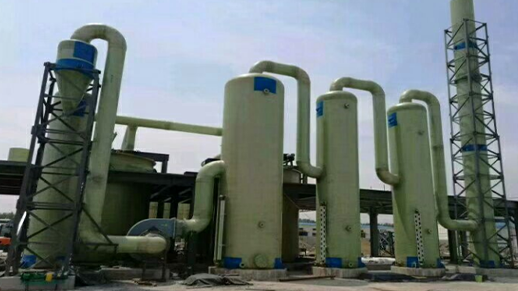

The FRP scrubbing tower mainly takes the vertical counter-current FRP scrubbing tower as the leading product. It utilizes the contact between the waste gas and the liquid, in which the liquid adsorbs the pollutants, and then separates the clean gas from the contaminated liquid to achieve the purpose of purification.
Description
marker
The FRP scrubbing tower mainly takes the vertical counter-current FRP scrubbing tower as the leading product. It utilizes the contact between the waste gas and the liquid, in which the liquid adsorbs the pollutants, and then separates the clean gas from the contaminated liquid to achieve the purpose of purification.
Simple Working Principle: The waste gas enters from the bottom of the packed scrubbing tower. The gas-liquid counter-current absorption method is adopted, that is, the scrubbing liquid water sprays downward in the form of mist or small droplets from the top of the tower. Through multiple contacts and dissolutions between the gas and the liquid phases, the pollutants in the gas are separated. After passing through the scrubbing tower, the waste gas can be cooled, the gas can be conditioned, and the particles can be removed. After being treated in the demisting section, it is discharged into the atmosphere.
Components
Glass viewing window and manhole, air inlet, air outlet, scrubbing liquid inlet, overflow outlet, drain outlet, catalyst filler material, circulating water pump, circulating water filter screen, circulating water pipeline, sprinkler nozzle.
Product Characteristics
1)The water-washing type waste gas treatment system features a low price and a simple treatment method.
2)The vertical structure occupies a small floor area, making it convenient for installation.
3)It has strong corrosion resistance and is suitable for corrosive gaseous and liquid pollution sources.
4)It is applicable to medium air volume.
